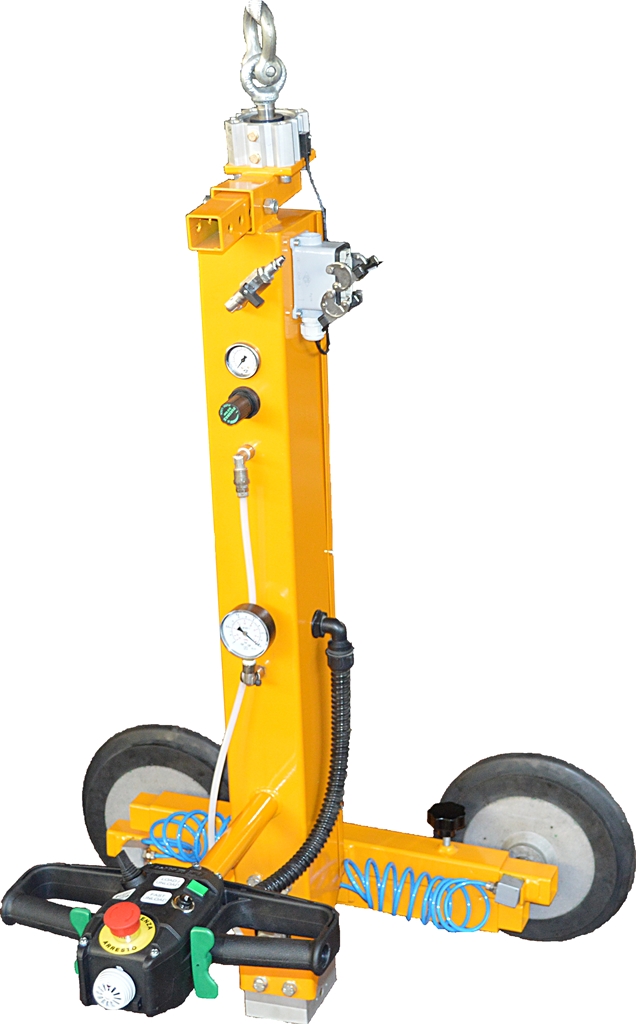

Lifting equipment to handle glass sheets.
On request it can be with pneumatic rotation 90° or electric rotation 200°.
Independent pneumatic vacuum pump “Venturi” or electric pump..

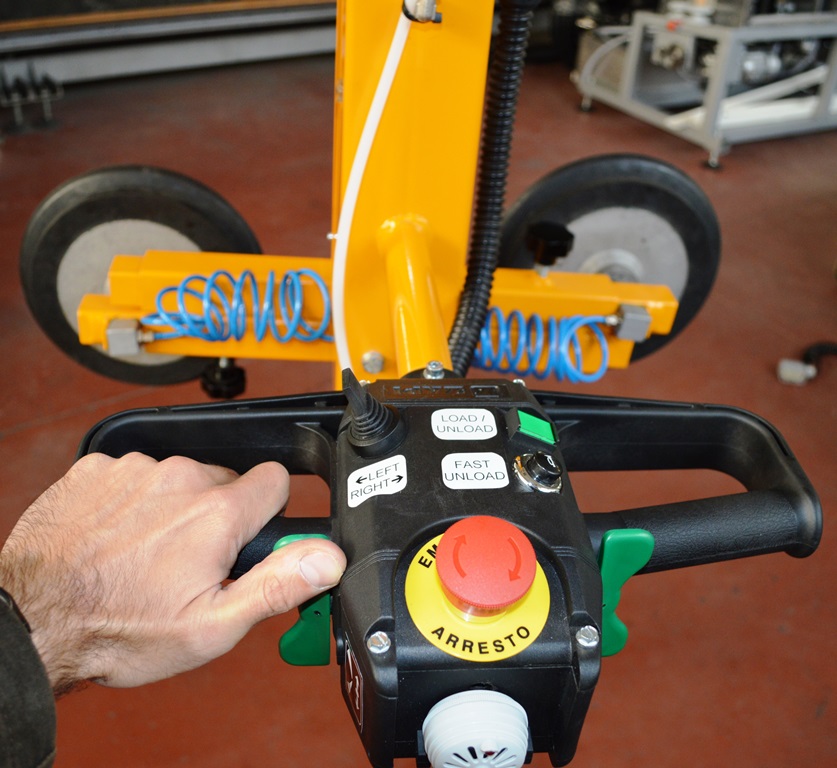

All the commands are on the manipulator, including up/down of the crane hoist.
Loading and unloading is by an electric button on the console.
Safety sensor for unloading and for lifting glass.
| Model | Feed | N° Cups | Capacity | Rotation |
| MANI-2F | Pneumatic | 2 | 180 Kg | – |
| MANI-2P | Pneumatic | 2 | 180 Kg | 200° Pneumatic |
| MANI-2E | Electric | 2 | 180 Kg | 200° Electric |
| MANI-2E | Electric | 2 | 250 Kg | 200° Electric |
