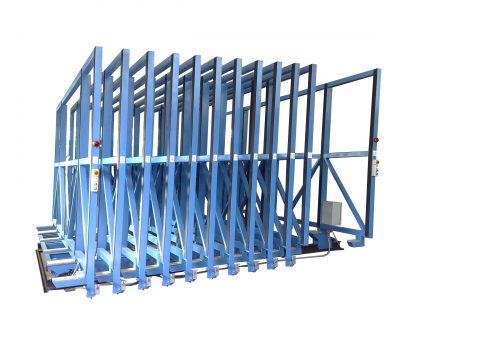

Semi-automatic lateral storage systems CLO6000-S / CLO3300-S
Semi-automatic storage system for jumbo and regular glass sheets.
Storage system for standard glass packages with lateral movement.

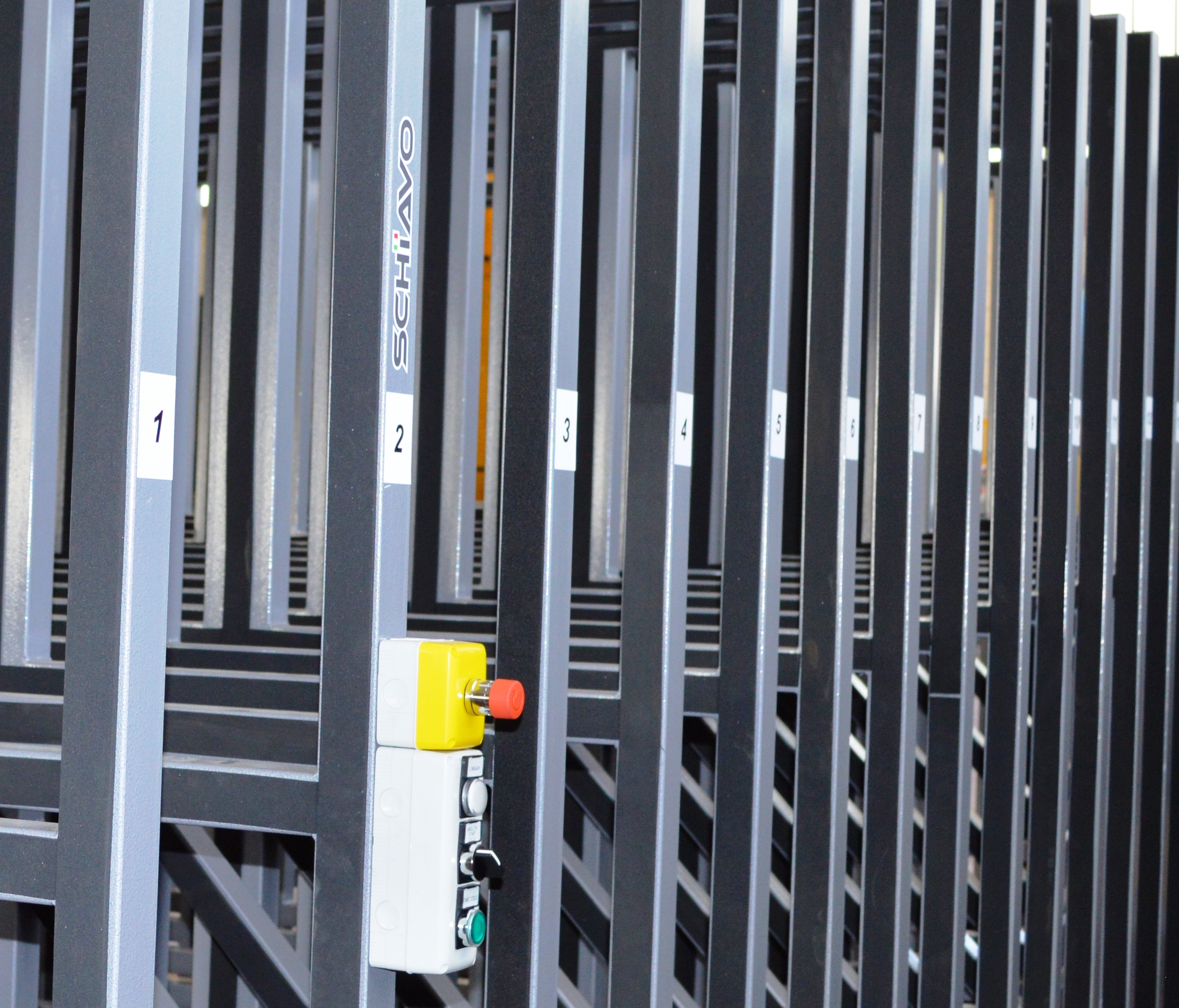

Selection of the drawer by pedal placed on the lateral side of the rack frame.
The storage system is composed by N° 1 gear motor controlled by inverter.
First and last rack fixed.
Opening to withdraw the glass sheet.
Electric box positioned on the last drawer.
Anti-turnover system with an underneath ball-bearing, which allows the rack to keep moving even in case of side leaning due to an unbalanced loading.
| Model | CLO6000-S | CLO3300-S | |||||
| Max. glass dimensions (mm) | 6000 X 3000 | 6000 X 3000 | 6000 X 3000 | 6000 X 3000 | 3300 x 2600 3700 x 2600* | 3300 x 2600 3700 x 2600* | 3300 x 2600 3700 x 2600* |
| Package thickness (mm) | 170 | 250 | 340 | 440 | 220 | 150 | 110 |
| Capacity per rack (Kg) | 6000 | 9000 | 12000 | 15000 | 3000 | 2500 | 1800 |
