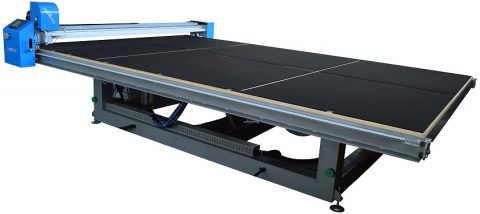

Linear cutting table for monolithic glass.
Tilting by hydraulic system and working surface covered with fire-proof black felt.
Powerful air cushion and 3 breakout bars (2 transversal, 1 longitudinal).
The longitudinal cut, along the X axis, is manual, the transversal cut, along the Y axis, is instead motorized.
The lubrication and the cutting pressure are adjustable by the operator.
The table is equipped with a control panel to set and display the quotas.
| Cutting Speed | Max Glass Sheet Dimensions | Glass Thickness | Cutting Accurancy | Compressed Air | Voltage | Installed Power | Weight |
|---|---|---|---|---|---|---|---|
| – | 3210×2440 mm | 3-15 mm | +/- 0,5 mm | 7-8 bar | 380 V – 50 Hz | 4 Kw | 1100 Kg |
